Multifunction Laser Machine

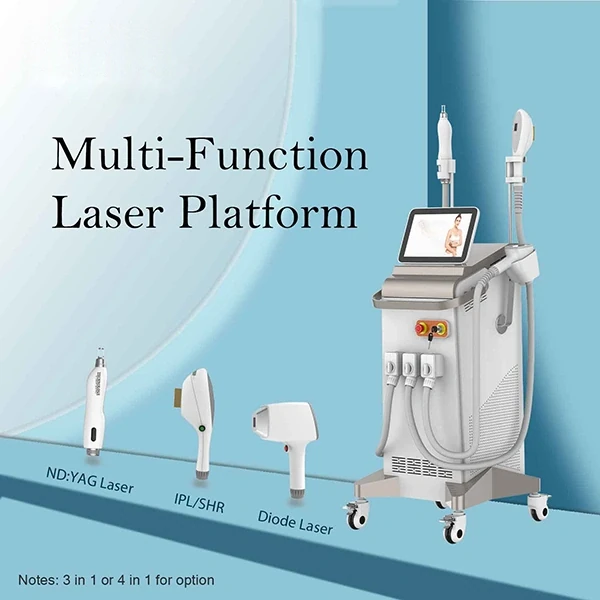

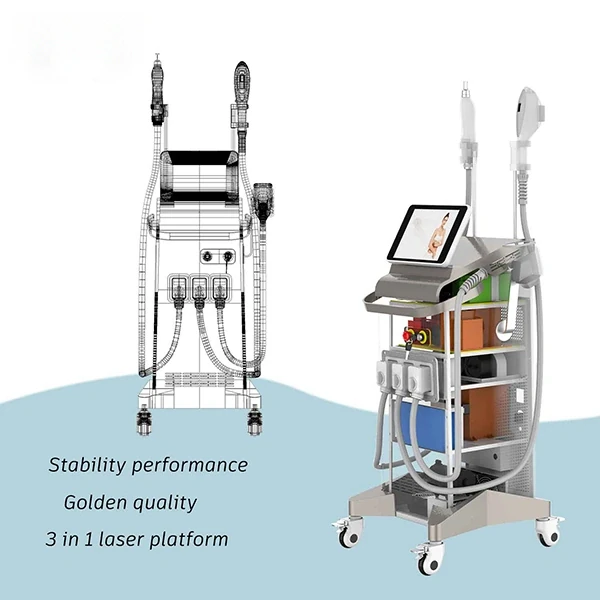

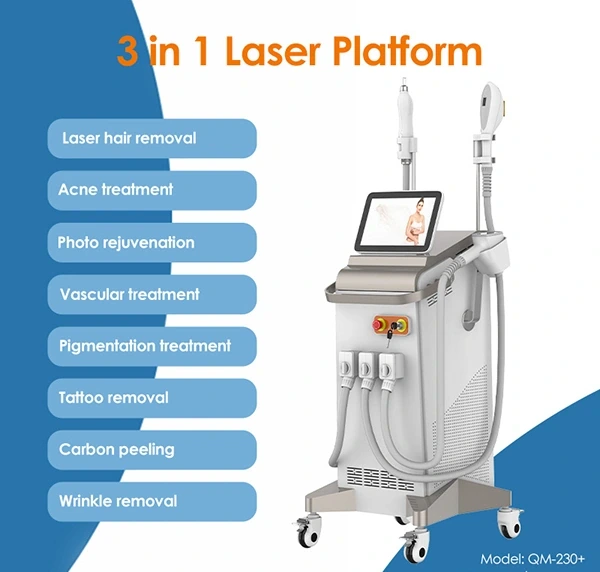

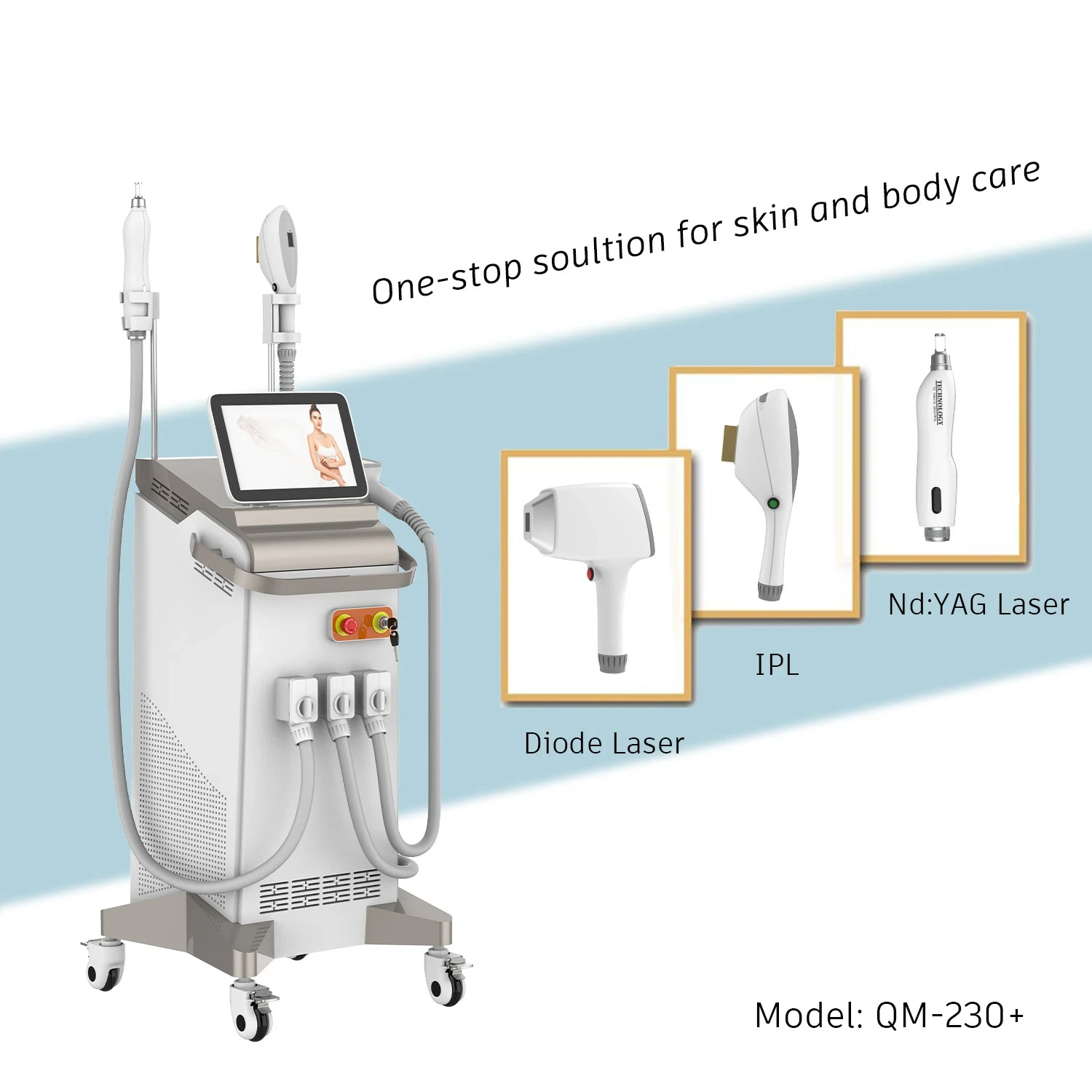

Vertical 3 in 1 Multi-function Laser System

QM-230+ Professional 3-in-1 Laser System integrating 808nm Diode Laser, Medical-Grade IPL, and Q-Switched Nd:YAG technologies into a single platform, it offers a variety of laser functions to address more than 20 clinical aesthetic problems. QM-230+ has treatments: hair removal , tattoo removal, carbon peeling, birth mark removal, vascular removal, acne removal, skin clean...

Application

The QM-230+ multifunctional laser system leverages three synergistic technologies – 808nm Diode Laser for deep follicular targeting, Medical IPL for broad-spectrum chromophore absorption, and Q-Switched Nd:YAG for ultra-precise pigment fragmentation. This integrated approach enables comprehensive treatment of cmprehensive aesthetic concerns: long-term hair reduction across a range of skin types with settings selected by a trained operator, acne clearance and sebum regulation, tattoo removal via 532nm, 1064nm, and 1320nm photoacoustic shattering (1064nm for black/blue, 532nm for red/brown, 1320nm for carbon peeling), pigment correction for melasma and sunspots, non-ablative skin rejuvenation, vascular lesion elimination, wrinkle reduction, carbon peel brightening.

1. long-term hair reduction
2. Pigment & Freckle Removal
3. Acne Treatment
4. Tattoo Removal
5. Skin Rejuvenation
6. Pore Minimization (Carbon Peeling)
7. Skin Brightening
8. Wrinkle Reduction
9. Spider Vein Removal
10. Skin Tightening

Working Principle

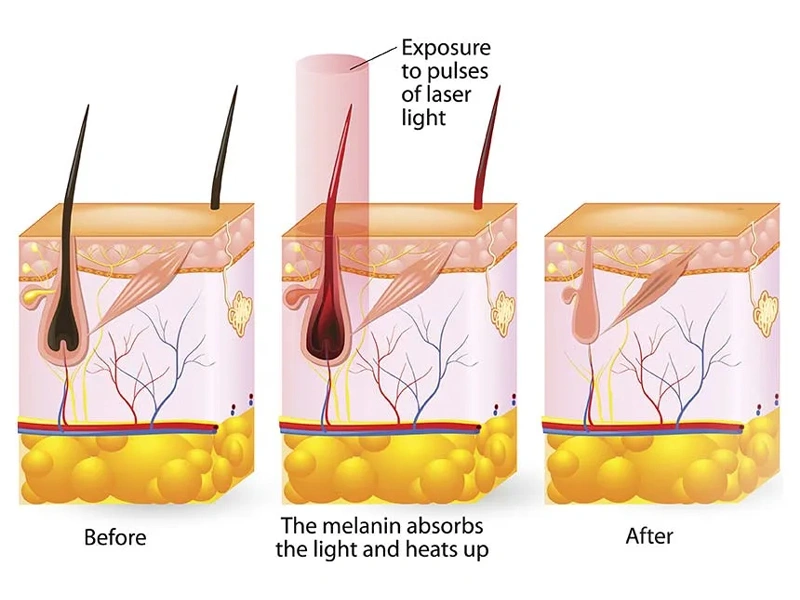

The 808nm Diode Laser module utilizes semiconductor technology to emit laser deep into the dermis. Operating at the established technology wavelength: 808nm, it offers deeper penetration and higher melanin absorption, safely treating all color skin types. The rapid 10Hz repetition rate combined with the large spot size in its class accelerates treatment speed by 40%, while the integrated Sapphire Dual-Chill Tip continuously cools the epidermis to minimize discomfort and eliminate thermal injury. This synergy ensures permanent follicle deactivation across all body areas while managing exposure to surrounding tissue.

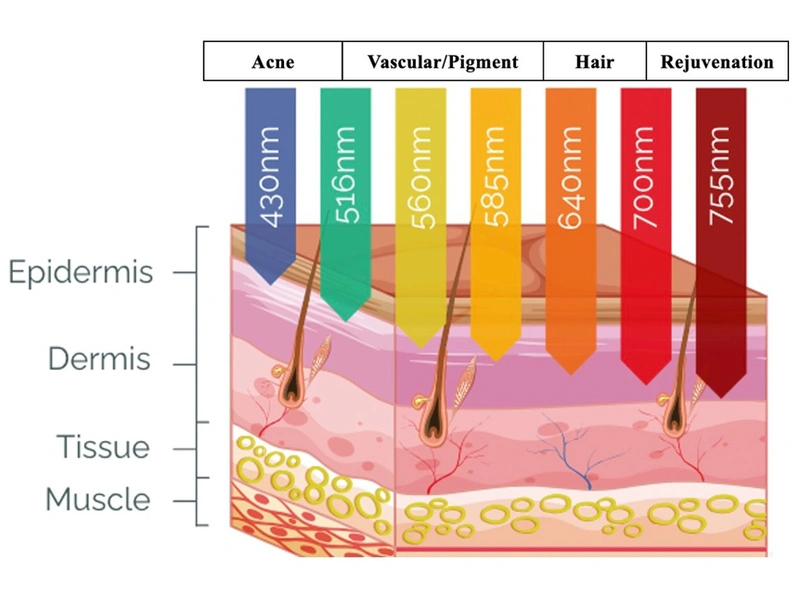

IPL technology utilizes a broad spectrum of light refined through precision filters to target specific chromophores within the skin. During treatment, xenon flash lamps deliver controlled microsecond pulses across visible wavelengths. These pulses are selectively absorbed by melanin in hair shafts and pigmented lesions,

converting light energy into concentrated heat while preserving the epidermal surface. The generated heat deactivates hair follicles at their growth cells and fragments unwanted pigmentation, allowing the body to naturally metabolize and eliminate damaged structures over time.

Concurrently, the thermal energy stimulates collagen remodeling in the dermis, improving skin elasticity and reducing fine lines. The system’s longer wavelengths enable deep penetration to reach subcutaneous follicles and pigment clusters without compromising surrounding tissue integrity. This dual-action process delivers long-term hair reduction, evens skin tone, and restores a radiant complexion—all through a non-invasive protocol that prioritizes epidermal safety.

The Q-switched Nd:YAG laser operates on the principle of selective photothermolysis, where its specific wavelengths penetrate skin tissue to precisely target chromophores. Delivering ultra-short nanosecond pulses with high peak energy, the laser fragments pigment clusters through rapid photoacoustic effects—shattering them into particles small enough for natural metabolic elimination by the body. This process effectively clears pigmented lesions like freckles while preserving surrounding tissue.

Distinct wavelengths enable specialized treatment: The 1064nm laser energy targets deeper dermal layers to break down black and blue pigments (common in tattoos and melasma), while the 532nm wavelength focuses on superficial red, pink, purple, and brown discolorations. Both wavelengths trigger instantaneous pigment fragmentation via light absorption, with particles either transepidermally eliminated or metabolized by phagocytes and the lymphatic system—all while managing exposure to healthy tissue due to the laser's precise thermal confinement and ultra-short pulse duration. Black doll (1320nm) with medical nano-carbon for the media, the use of carbon penetration characteristics, wait until after entering the pores of the carbon particles with a laser blast, on the one hand by the wavelength of the laser action pending in the dermis and epidermis pigment be decomposed blasting, so as to achieve freckle, go pigment purposes.

Advantages of QM-230+, 3 in 1 Multi-functional Laser Machine

• Golden Wavelength– 808nm diode laser wavelength
• Intelligent Diode Laser :40 Million shots, US Coherent Laser Source

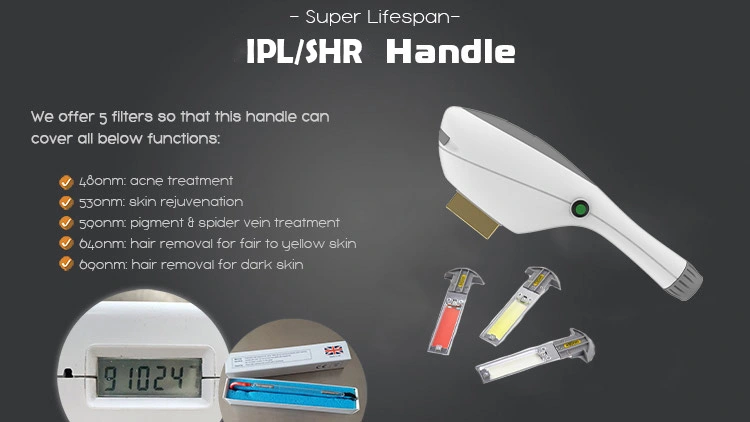

• IPL Handle :Super 1 Million Shots, UK Xenon Lamp

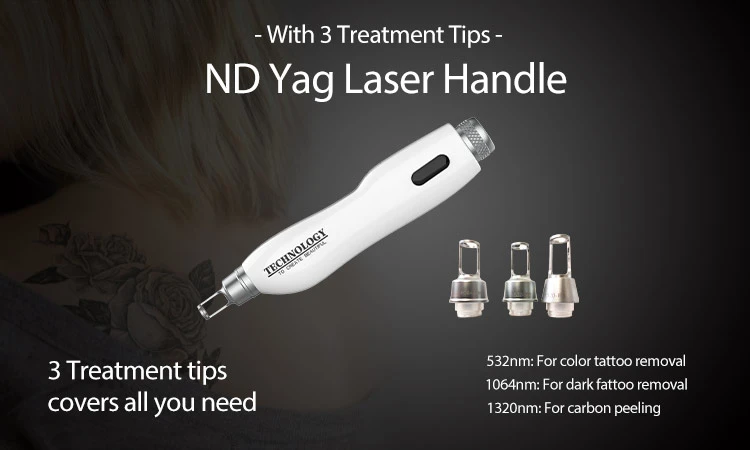

• ND Yag Laser Handle :3 Million Shots, UK Lamp
• Efficient– Powerful semiconductor cooling, air cooling, and water cooling ensure long-lasting operation
• Water system– The water circulation and temperature monitoring system ensures the proper operation of the laser hair removal device, extending the machine's lifespan and safety
• Advanced flash counter– The laser flash counter system always displays the number of flashes you have used
• Versatile –The laser epilator is suitable for all skin tones and hair colors

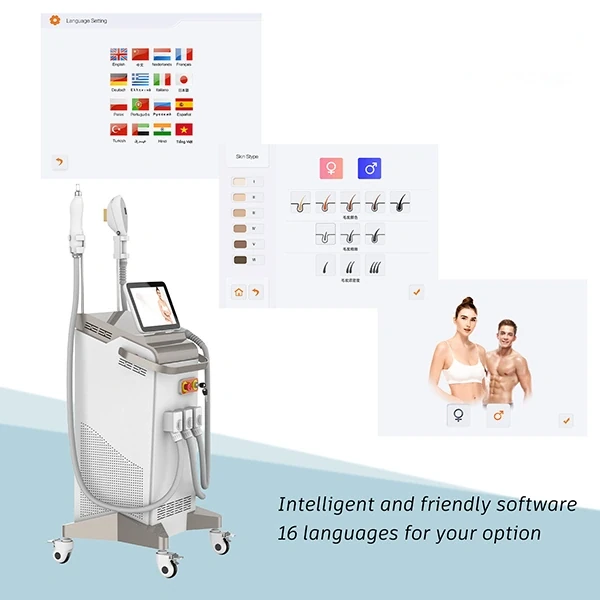

• Interface-friendly –Simple and easy to operate
• Multi-function：3 handle in 1 machine, comprehensive treatment with only 1 machine
• User-friendly– Plug-and-play technology
• downtime depends on treatment settings and client response– Treatment time is short, recovery is rapid, and the patient's daily routine is minimally impacted

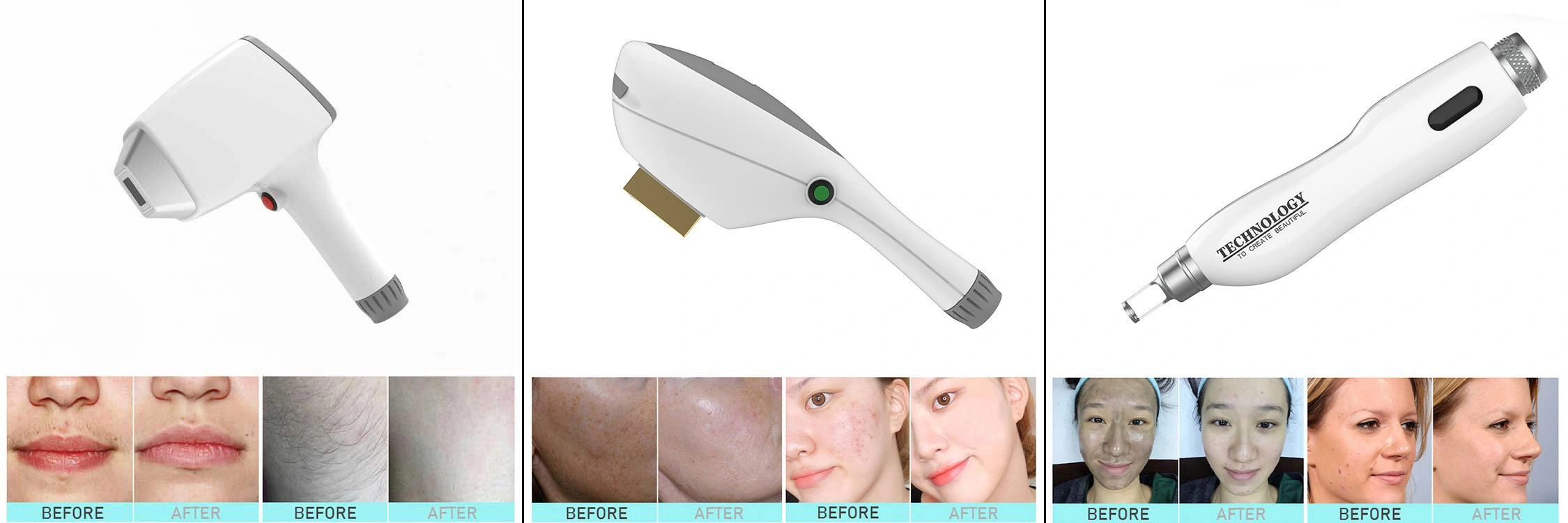

Before & After

Technical Specification

Vertical Multi-function Laser Machine FAQs

▶ What is the difference Between Diode Laser Hair Removal and IPL Hair Removal?

The main difference between the treatment methods outlined above is the way the light source is released.

Diode lasers emit a single wavelength 808nm, for deeper follicle targeting and more effective results on medium to dark skin types.

intense pulsed light utilizes a broad spectrum of light energies(400nm-1200nm), for lighter skin tones and larger areas

▶ Does laser hair removal affect sweating?

No. Even if the hair follicles are completely removed, the ducts of the sebaceous glands still exist, allowing sebum secreted by these glands to be excreted normally. Sweat is excreted through the sweat gland ducts, independent of the hair follicle ducts. For example, the palms of your hands do not have hair follicles, yet they can sweat.

▶ What precautions should I take after hair removal treatment?

1. After the treatment, the treated area may feel slightly hot and red around the hair follicles. This is normal. If needed, apply an ice compress to the area for 10-15 minutes.

2. Any remaining hair in the treated area can be plucked within 24 hours or will fall off naturally within a few days.

3. On the day of treatment, please wash your face with cool water and use liquid skincare products.

4. After hair removal treatment, please moisturize and use sunscreen.

▶ What treatments can be performed besides hair removal?

In addition to diode laser hair removal, the IPL function can be used for skin rejuvenation, acne therapy, pigmentation reduction, and broken capillaries.

▶ What are the maintenance and service requirements?

Like any professional hair removal device, the IPL + Diode Laser system requires regular handpiece inspection, filter cleaning, and cooling system checks. Reputable manufacturers provide detailed service schedules and technical support for long-term use.

If you're considering purchasing a multi-function laser device, you should be aware of the following advantages:

Cooling System– Air, water, and TEC cooling are to minimize the impact of thermal damage on the diode lifespan

Output speed– Frequency 1~10 Hz controllable, pulse output

Intelligent Diode Laser :40 Million shots, US Coherent Laser Source

IPL Handle :Super 1 Million Shots, UK Lamp

ND Yag Laser Handle :3 Million Shots, UK Lamp

Operating Time –20 hours of continuous operation

Safety Performance –When the ratio between the energy value and the frequency value does not comply with the safe output energy density, the system will automatically adjust the safe state.

The high energy levels of QM-230+ allow pigment/tattoo removal and hair removal with fewer treatments compared with other competing laser systems.

User-Friendly –Plug-and-Play technology, no installation required after shipping
