Laser Emitter
Model: Laser Emitter
High-Power Laser Emitters for Diode Laser Machines Coherent USA Laser Bars | Multiple Wavelengths | 500W–1600W Options Our diode laser emitters are core components used in professional hair removal and medical aesthetic machines. Sourced from Coherent (USA), these high-reliability laser bars are known for their stability, precision, and long operational life.
Read the full overviewPricing
Available upon inquiry
Competitive factory-direct pricing
Why order from ZENLASE?
- Written quotation
- Certificate copies sent before you order
- Consumables & spare parts supplied long-term
- Operator training materials in the languages agreed for your order
- One contact from quote to after-sales
Product Overview

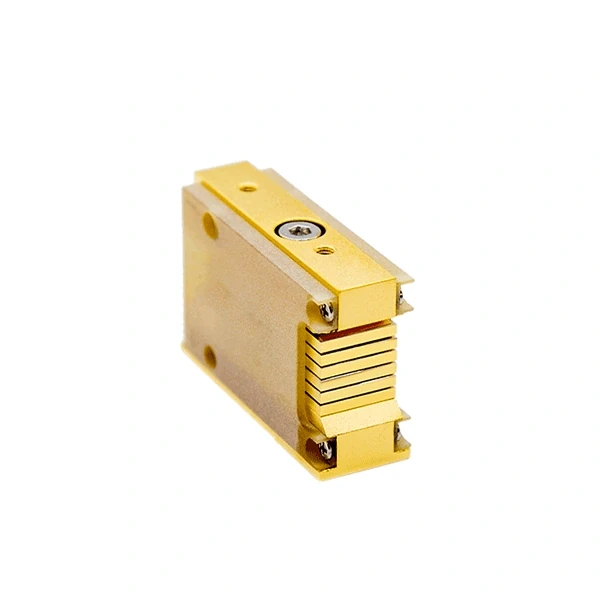

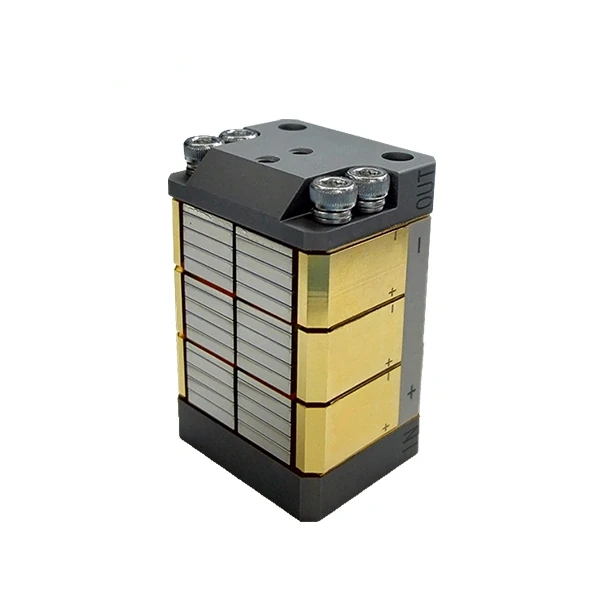

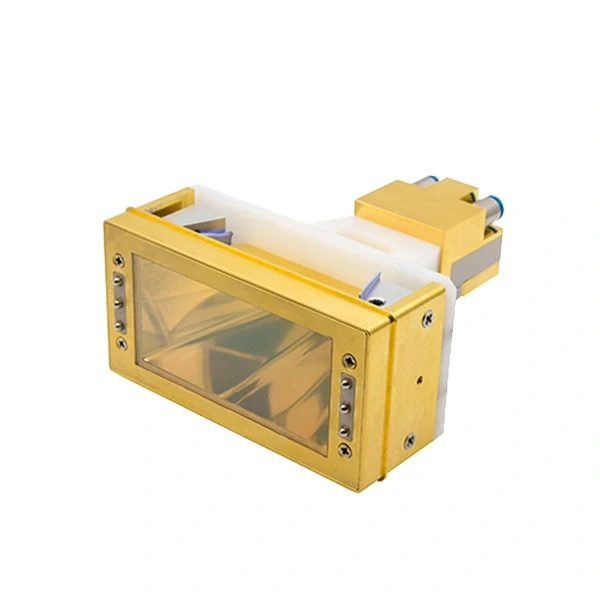

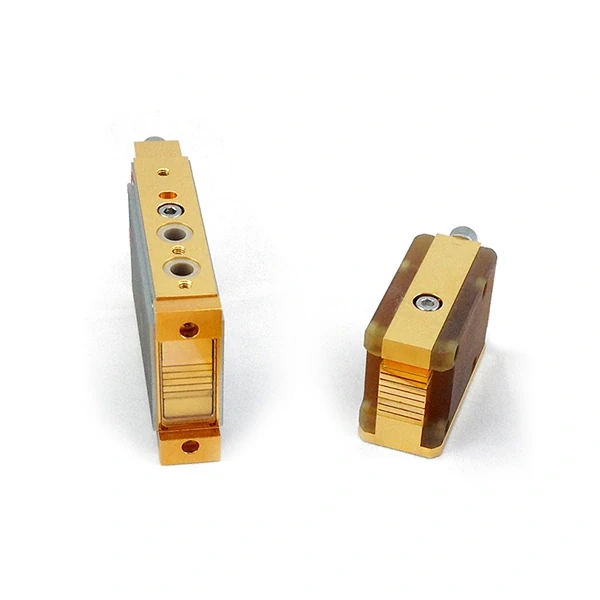

High-Power Laser Emitters for Diode Laser Machines
Coherent USA Laser Bars | Multiple Wavelengths | 500W–1600W Options
Our diode laser emitters are core components used in professional hair removal and medical aesthetic machines. Sourced from Coherent (USA), these high-reliability laser bars are known for their stability, precision, and long operational life. We offer a wide range of configurations, including power levels from 500W to 1600W, multiple bar counts, and various wavelengths such as 808nm, 810nm, 755nm, 940nm, and 1064nm to suit different treatment needs.
Advantages
Available in multiple power levels:
500W / 800W / 1000W / 1200W / 1600W
Each power level is achieved by combining bars of 50W or 100W output
Choose from:
5-bar, 8-bar, 10-bar, 12-bar, and 16-bar modules
Each bar can be 50W or 100W depending on the desired total output
808nm / 810nm – Standard for most skin types
755nm – More effective for lighter skin and fine hair
940nm / 1064nm – Suitable for deeper penetration and darker skin tones
Specifications
| Item | Description |
| Power Range | 500W, 800W, 1000W, 1200W, 1600W |
| Bar Options | 5-bar, 8-bar, 10-bar, 12-bar, 16-bar (50W or 100W per bar) |
| Wavelength Options | 755nm, 808nm, 810nm, 940nm, 1064nm |
| Laser Type | CW Diode Laser (Continuous Wave) |
| Material Source | Coherent Laser Bar – USA Origin |
| Cooling Method | Water-cooled or TEC (depending on system integration) |
| Beam Quality | High precision, suitable for professional clinical results |
| Size / Dimensions | Custom sizes available based on handpiece design or OEM requirements |
| Lifespan (Estimated) | >10 million pulses (with proper cooling and usage) |
Integration & Custom Orders
Our laser emitters are available for custom handpiece designs or as replacement parts for diode laser machines. We provide technical assistance for integration into both single-wavelength and multi-wavelength systems. Custom bar layouts and wavelength combinations can be configured based on your clinical or manufacturing needs.
Applications
Hair Removal Treatments Integrated into diode laser handpieces for long-term hair reduction across various skin and hair types. | Skin Rejuvenation and Vascular Treatments Specific wavelengths like 755nm or 1064nm can be used for skin tightening and vascular lesion reduction. | OEM and R&D Integration Suitable for device manufacturers, repair services, and laboratories building or upgrading diode laser systems. |
Ordering Information
To place an order or request a quotation, please specify the required parameters:
Total Output Power (W)
Preferred Wavelength (nm)
Number of Bars
Power per Bar (W)
Any specific connector or cable requirements
Contact our technical sales team to ensure the correct configuration is selected for your machine and application.
Configuration notice: Specifications, accessories, interface options and permitted uses vary by destination market and confirmed configuration. The Proforma Invoice, configuration sheet and model-specific documents supplied before payment take precedence.
Technology
How this technology worksPower Range: 500W, 800W, 1000W, 1200W, 1600W
Wavelength Options: 755nm, 808nm, 810nm, 940nm, 1064nm
Cooling Method: Water-cooled or TEC (depending on system integration)
Hair Removal Treatments Integrated into diode laser handpieces for long-term hair reduction across various skin and hair types.: Skin Rejuvenation and Vascular Treatments Specific wavelengths like 755nm or 1064nm can be used for skin tightening and vascular lesion reduction. / OEM and R&D Integration Suitable for device manufacturers, repair services, and laboratories building or upgrading diode laser systems.
Wavelength
755nm,
Power
500W,
Cooling
Water-cooled or TEC
Technology
CW Diode Laser
Warranty & After-Sales, in Concrete Terms
The exact terms are printed on your Proforma Invoice before payment — no verbal promises.
Model-Specific Warranty
Duration, covered components and exclusions are confirmed in writing before payment.
Remote Engineer Support
Technical questions are coordinated by video call with factory engineers when needed.
Parts Plan Confirmed
Availability, price and dispatch method are confirmed for the selected model.
Operator Training Materials
Start-up guidance, manuals and available video materials are confirmed for the selected model.
How Ordering Works
See the full process- 1
Inquiry
Sales & technical coordination
- 2
Quote & PI
Written quotation
- 3
Deposit
Terms in PI
- 4
Production & QC
Test video sent
- 5
Ship & Support
Documents + training
Frequently Asked Questions
What certifications does this equipment carry?
Certification coverage varies by model. Tell us your destination country and we will send the exact certificate copies that apply to the unit you are considering, so you can check them against your local import requirements before ordering.
What warranty and after-sales support is included?
Warranty terms, operator training, technical support and spare-parts availability are confirmed in writing with your quotation for each model — with ZENLASE as your single point of contact.
How is the machine shipped, and do you handle customs?
We ship worldwide by air or sea with full export documentation and provide customs-clearance guidance for your country. Lead times and freight options are confirmed with your quotation.
What payment terms and pricing do you offer?
Pricing is factory-direct and quoted per order. We support common international payment methods (T/T and others) and tiered pricing for distributors and multi-unit orders.
Can I order under my own brand (private label / OEM)?
Yes. Distributors and clinics can request private-label branding and territory arrangements. Standard items are the logo, interface branding and printed materials; tooling-level changes are a volume project.
